Hello, I have a problem with the hud not working in the BMW F26, the ista light is red - the module is not responding. My question is whether the hud module is installed in the clocks or in the hud projector
07-17-2024
07-17-2024

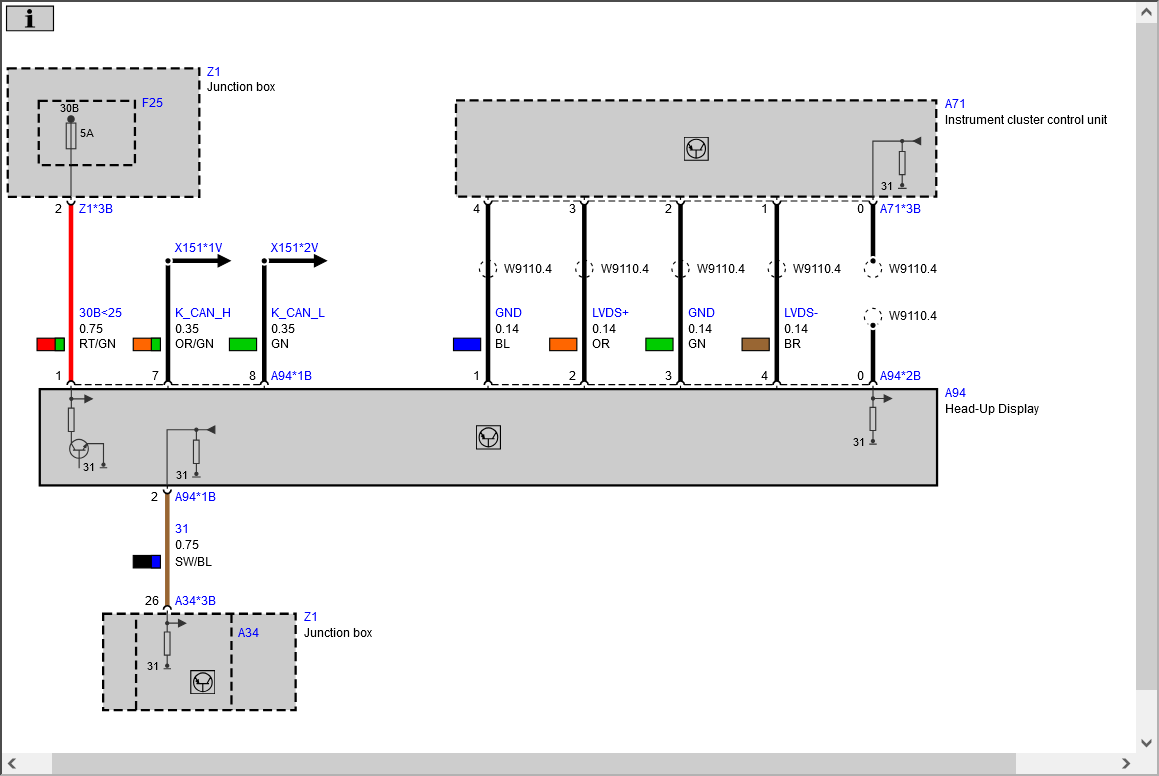

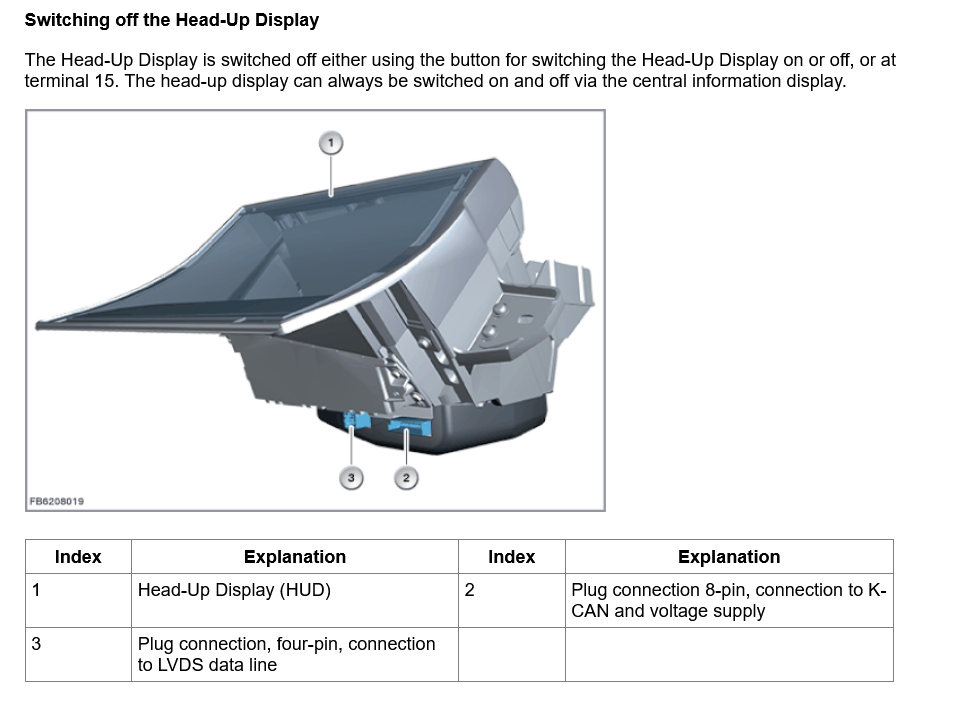

Here's some info about the HUD:
A94 = HUD

A94 = HUD
07-19-2024
07-19-2024

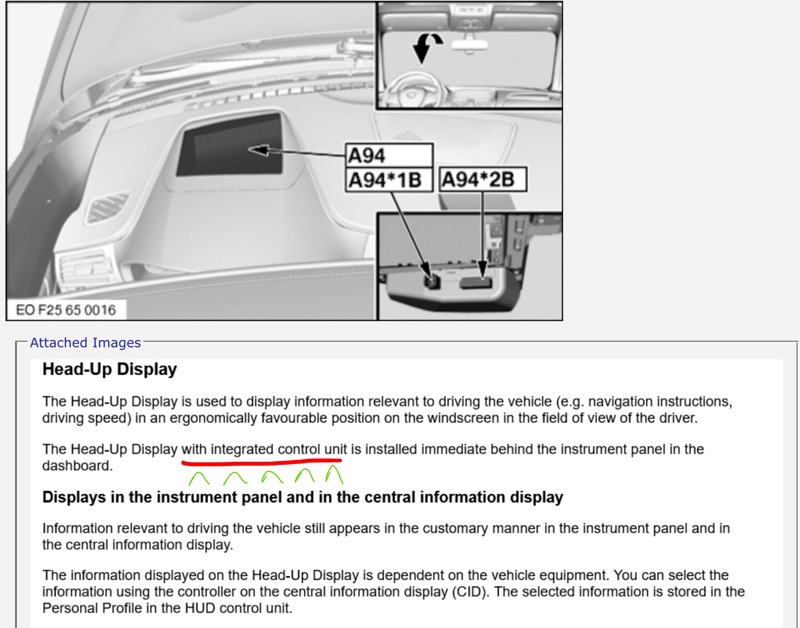

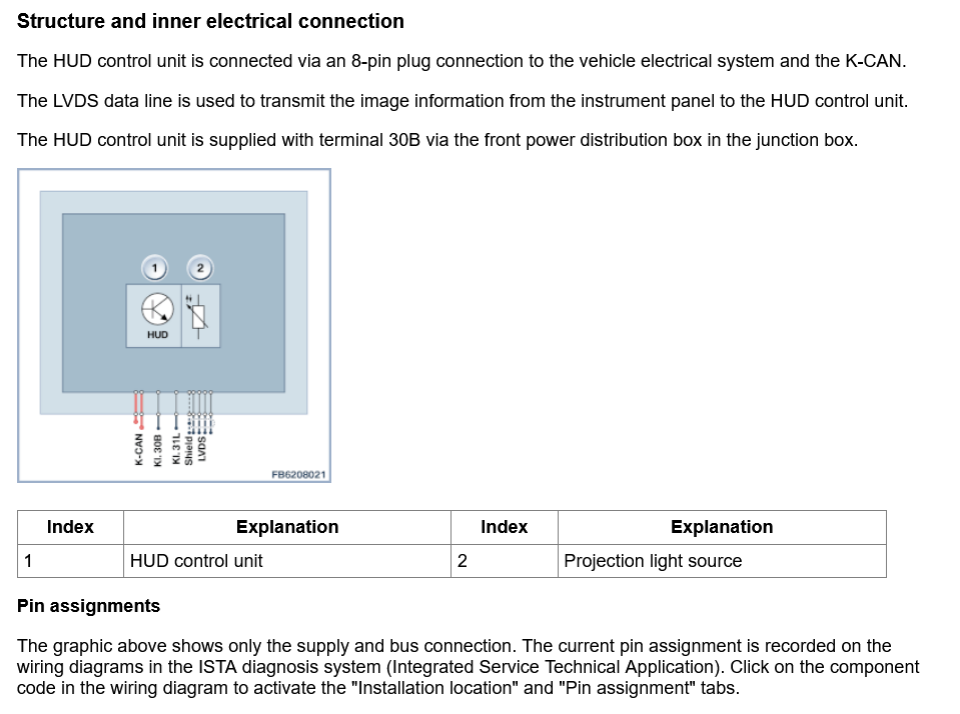

Yep…the “control unit” for the HUD is integrated into the HUD unit behind the instrument cluster…which is verified by the HUD info below (and above).
Has the OP checked the fuse (F25) and the electrical connections to make sure every electrical connection is seated properly and that the fuse is intact?


Has the OP checked the fuse (F25) and the electrical connections to make sure every electrical connection is seated properly and that the fuse is intact?
12-09-2024
12-09-2024
Will each version of the clock have the same hudu graphics board?
